Hwyl is now the Authorized Distributor for Chronos High-Speed Cameras across India & SEA
Precision Imaging Powered by 25GigE Technology

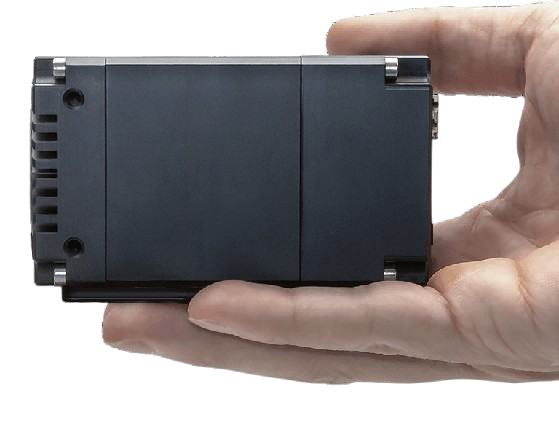

25GigE machine vision cameras deliver ultra-fast data transfer for high-bandwidth industrial imaging applications. They provide exceptional image quality and low-latency performance for capturing detailed visuals with maximum accuracy. Ideal for automation, scientific research, and advanced inspection systems requiring speed and precision.
25 Gbps data transmission for high-speed maximum throughput with outstanding image quality at higher resolutions.
Built-in optical transceiver, eliminating the need for a separate SFP module. Connect a dual LC multimode fiber cable and start streaming at full 25 Gigabit speeds
25GigE with RDMA reliably streams 3100 MB/s of data directly to main memory, bypassing the CPU and OS, elimating CPU usage and increasing throughput.
Features a 17-pin GPIO port for advanced functionality and precise camera control. RS-422 offers long-distance data transmission with strong noise immunity.
The 25GigE cameras are compatible with 3rd party software and hardware vendors that are GigE Vision 3.0 + RDMA compliant.
The 25GigE cameras are actively aligned to minimize sensor tilt and rotation, and to place the center of the image sensor at the lens optical axis
Exclusive Distributor of LUCID Vision Labs in India
Application Areas
Holding a prominent position in advanced imaging technology, 25GigE machine vision cameras are recognized for their ultra-high bandwidth, exceptional image clarity, and superior performance in data-intensive applications. Their ability to handle massive data throughput with low latency makes them an ideal choice for integration into high-performance imaging systems. The advanced capabilities of 25GigE machine vision cameras make them highly suitable for aerial and ground-based EO/IR systems, drones, UAVs, surveillance platforms, and other defense applications where speed, precision, and reliability are critical.
- EO-IR Systems
- Drones
- UAVs, Surveillance and Defence
- Robotic Automation
- Factory Automation
25GigE machine vision cameras are redefining high-performance imaging with unmatched data transfer speeds and exceptional image quality. Designed for demanding applications, they deliver sharp, high-resolution images with minimal latency, even in environments requiring rapid image capture and processing. If speed, precision, and advanced performance are your priorities, our 25GigE machine vision cameras offer the ideal solution for next-generation imaging applications across industries in India.
Product Name
Product Name
Product Name
Product Name
Product Name
Product Name
Product Name
Key Products to Look Out For
Atlas25 24.5MP Camera
Featuring Sony IMX 530, 24.5MP camera at 90 FPS without compression
Atlas10 47MP
47MP Rolling Shutter camera featuring Sony IMX 492 operating at 23.2 fps
Atlas10 45MP
45MP Global Shutter camera featuring onsemi XGS45000 operating at 16 fps
| Model | MP | Resolution | FPS | Sensor | Format | Pixel Size | Shutter | Lens Mount | Chroma | Interface |
|---|---|---|---|---|---|---|---|---|---|---|
| ATV245S | 24.5 MP | 5320 x 4600 px | 90.0 fps | Sony IMX530 CMOS | 1.2" | 2.74 µm | Global | C | Mono / Color | 25GigE LC Duplex MM Fiber |
| ATV204S | 20.4 MP | 4504 x 4504 px | 108.3 fps | Sony IMX531 CMOS | 1.1" | 2.74 µm | Global | C | Mono / Color | 25GigE LC Duplex MM Fiber |
| ATV162S | 16.2 MP | 5320 x 3040 px | 150.5 fps | Sony IMX532 CMOS | 1.1" | 2.74 µm | Global | C | Mono / Color | 25GigE LC Duplex MM Fiber |
| ATV124S | 12.3 MP | 4096 x 3000 px | 176.2 fps | Sony IMX535 CMOS | 1/1.1" | 2.74 µm | Global | C | Mono / Color | 25GigE LC Duplex MM Fiber |
Request a Quote
Discover the ideal machine vision camera for your specific needs, with solutions tailored to your application and budget. Get expert guidance and pricing today.
