Event Based Sensors
Event-based sensors capture only changes in a scene, enabling faster, low-latency vision with minimal data. Perfect for robotics and dynamic environments. Connect with Hwyl to find the right solution for your needs.
Why Choose Event-Based Vision?
Event-based vision delivers key advantages over traditional imaging, offering microsecond-level response, high dynamic range, and zero motion blur. By processing only what changes, these sensors reduce data load, cut power consumption, and excel in fast, unpredictable environments. This makes them ideal for applications where speed, efficiency, and accuracy are critical.
Inspired by the human retina, at the heart of Prophesee patented, Event-Based Metavision sensors, each pixel embeds its own intelligence processing enabling them to activate themselves independently, triggering events.
In event-based, each pixel only reports when it senses movement. Whereas in a frame-based sensor, all pixels record at the same time, in an event-based sensor, each pixel is perfectly independent.
Prophesee Evaluation Kits are your perfect gateway to Event-Based Vision. Two types of evaluation kits – USB Cameras for plug-and-play PC evaluation and Embedded Starter Kits for building custom embedded systems.
The Metavision SDK is based on an open source architecture, designed to interface with these event-based cameras, providing tools and APIs to process the unique data they generate.
With each pixel only reporting when it senses movement, event-based Metavision sensors generate on average 10 to 1000x less data and can operate at 10,000+ Fps.
With more than 120dB Dynamic Range, you can now perfectly see details from pitch dark to blinding brightness. Metavision enables you to see events where light almost does not exist, down to 0.08 lx.
Authorized Distributor for Prophesee in India
Application Areas
Industrial
Event-based sensors enable high-speed inspection, object tracking, and predictive maintenance by capturing only motion, eliminating blur, and reducing data load—perfect for fast-moving production lines and robotic systems.
Medical
In healthcare, they support real-time eye tracking, tremor detection, and gesture control in sterile environments. Their low-light sensitivity also enhances imaging in diagnostic tools and microscopy.
- Industrial
- Medical
- IoT
- Automotive
- Defence & Aerospace
IoT
Ideal for smart devices and environments, these sensors offer always-on motion detection, gesture recognition, vibration monitoring, and privacy-aware monitoring, all with ultra-low power consumption.
Automotive
They power advanced driver monitoring, pedestrian detection, and object tracking in real time, even in poor lighting—making them a strong fit for ADAS and autonomous driving systems.
Defence & Aerospace
Event-based sensors deliver microsecond-level tracking, infrared detection, and low-SWaP performance, supporting mission-critical systems in drones, satellites, and tactical defense applications.
Product Name
Product Name
Product Name
Product Name
Product Name
Product Name
Product Name
One Sensor Many Applications
Motion & Posture Analysis
High Speed Counting & Object Tracking
Fluid & Vibration Monitoring
Optical Flow & Ultra Slow Motion
Drone Navigation & Tracking
Gesture Detection & Analysis

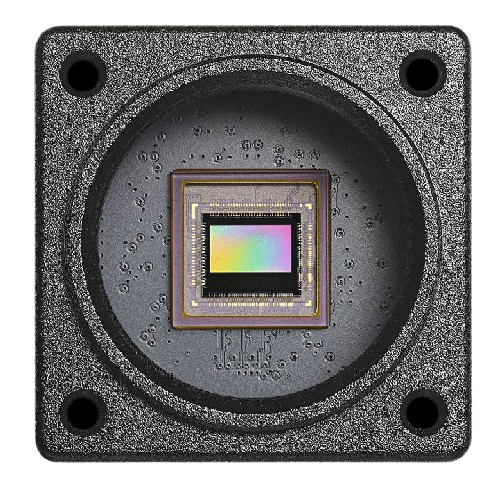

Evaluation Kit 5 – EVK5 HD
Bar lights in machine vision provide even, uniform illumination across long surfaces, enhancing visibility and detail for accurate inspection and analysis.
Resolution & Pixel
1280 x 720 & 4.86um
Image Sensor
IMX 646 HD Sensor
Interface
USB3.0
Lens & DFOV
CS Lens & 47.7° 158.9°
Kit Includes
CS Lens, EVS Trigger & USB 3.0 Cable, CS to M12 Adapter, tripod adapter & Quick Start Guide

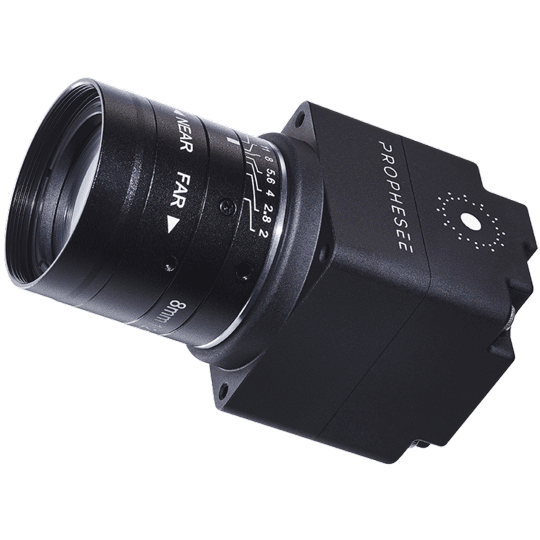

Evaluation Kit 4 – EVK4 HD
Ring lights in machine vision offer consistent, shadow-free illumination around the lens, ideal for enhancing detail and contrast in close-up inspections.
Resolution & Pixel
1280 x 720 & 4.86um
Image Sensor
IMX 636 HD Sensor
Interface
USB3.0
Lens & DFOV
CS Lens & 47.7° 158.9°
Kit Includes
1/2.5" Lens, USB C to USB A Cable, C to CS Adapter, Tripod & Quick Start Guide

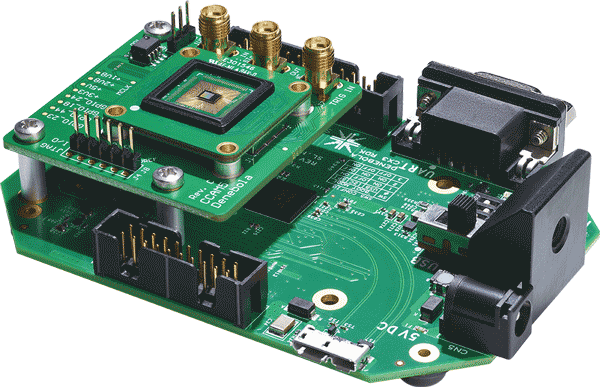

Evaluation Kit 3 – EVK3
Ring lights in machine vision offer consistent, shadow-free illumination around the lens, ideal for enhancing detail and contrast in close-up inspections.
Resolution & Pixel
320 x 320, 6.3um
Image Sensor
Prophesee GenX320 1/5"
Interface
USB3.0
Lens & DFOV
M12 Lens & 58° 76°
Kit Includes
1 x Tripod + 1 x USB3 Micro-B to USB-A cable
Key Products to Lookout For
Metavision SDK Pro & Enterprise License
Subscription for METAVISION (SDK) 5 PRO -Access source code of advanced modules (algorithms, applications,code samples, tools etc.)

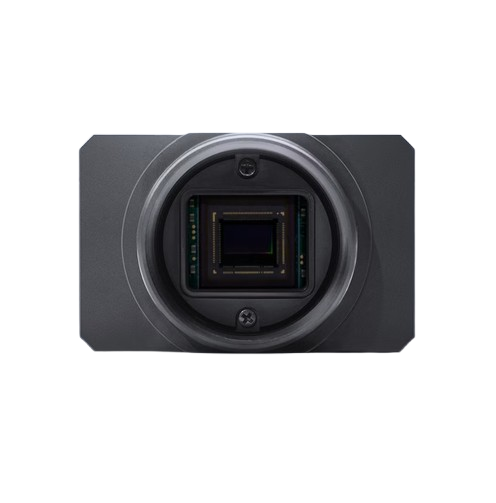

IP67 EVS Camera - TRT003S-EC
640 x 512 px, Sony | Prophesee IMX637 CMOS, 1/4.5”, 4.86 μm, Shutter-Free, C Mount, 2.5GigE M12
IP67 EVS Camera - TRT009S-EC
1280 x 720 px, Sony | Prophesee IMX636 CMOS, 1/2.5”, 4.86 μm, Shutter-Free, C Mount, 2.5GigE M12

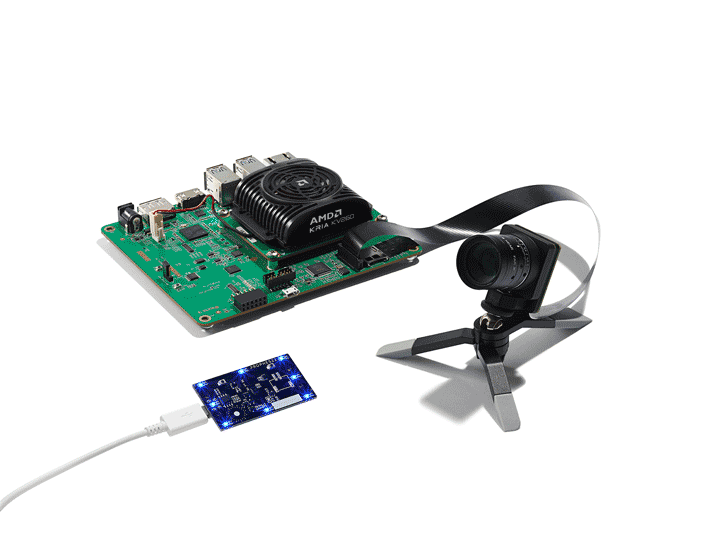

Starter Kit IMX 636
Bar lights in machine vision provide even, uniform illumination across long surfaces, enhancing visibility and detail for accurate inspection and analysis.
Resolution & Pixel
0.92 M, 1280 (H) x 720 (V)
Image Sensor
IMX 636 HD Sensor
Interface
MIPI CSI-2 D-PHY
Dynamic Range
> 120 dB
Kit Includes
Flex cable to connect to the RPi interface on the KRIA KV260 development board

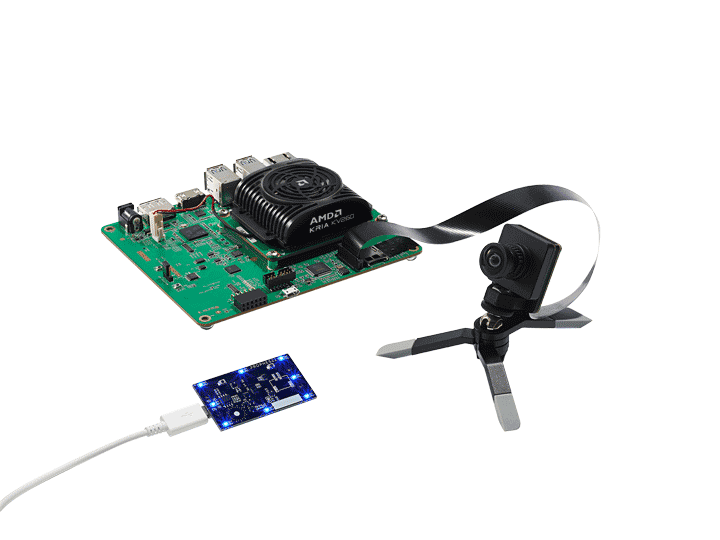

Starter Kit IMX Genx 320
Ring lights in machine vision offer consistent, shadow-free illumination around the lens, ideal for enhancing detail and contrast in close-up inspections.
Resolution & Pixel
100K pixels, 320 (H) x 320 (V)
Image Sensor
Prophesee GenX320 1/5"
Interface
MIPI CSI-2 D-PHY
Dynamic Range
> 140 dB
Kit Includes
Flex cable (20cm) to connect to the RBPi interface on the KRIA KV260
Request a Quote
Discover the ideal machine vision camera for your specific needs, with solutions tailored to your application and budget. Get expert guidance and pricing today.
