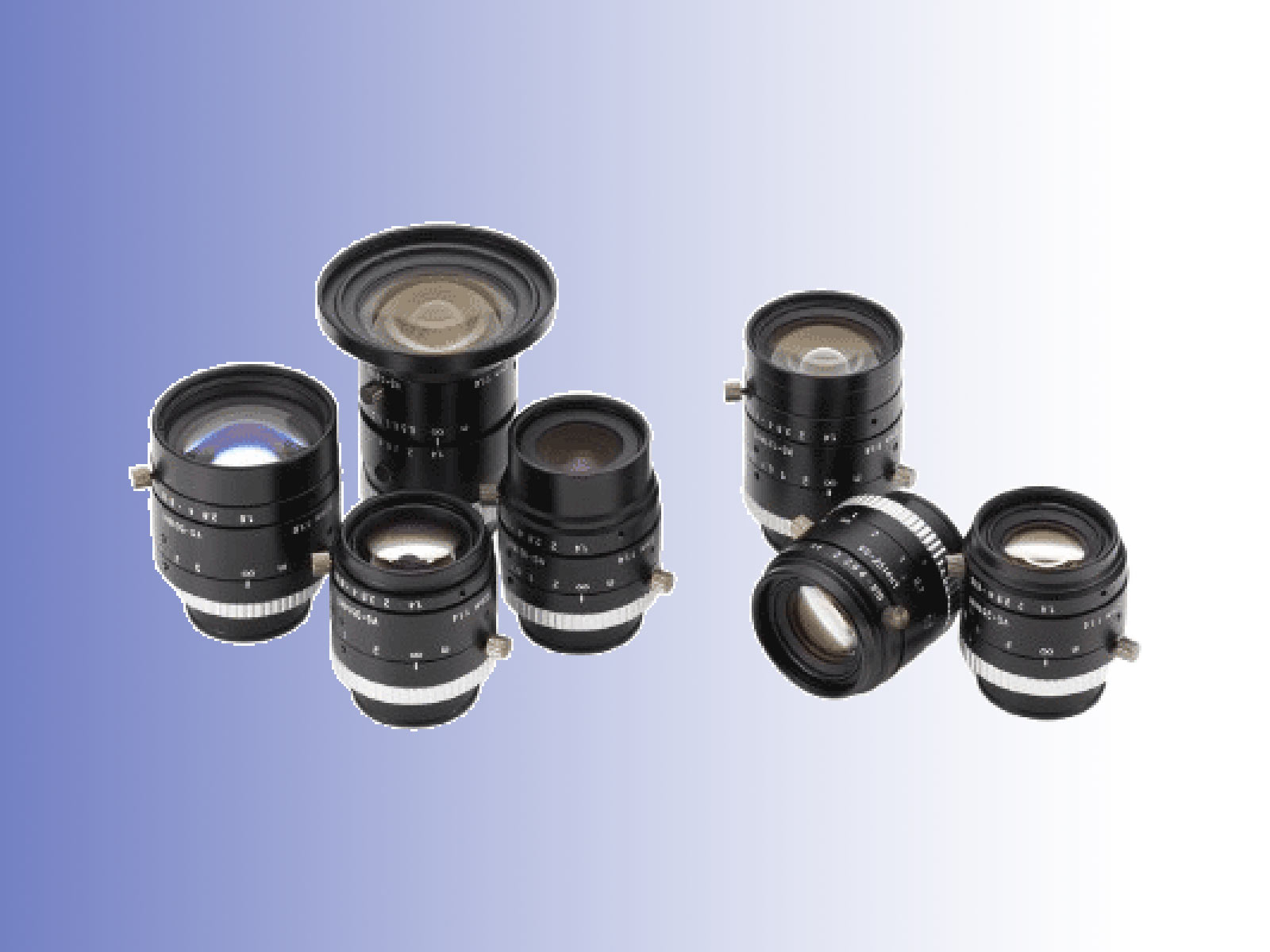

A Comprehensive Guide to IR Lenses: SWIR, LWIR, and Their Role in Imaging

Infrared (IR) imaging has become a crucial technology in various industries, from security and defence to industrial inspection and scientific research. Unlike visible light imaging, IR cameras rely on capturing infrared radiation emitted or reflected by objects. However, to achieve clear and precise imaging, specialized IR lenses are essential.

Choosing the right IR lens depends on multiple factors, including the wavelength range, focal length, and intended application. This article explores different types of IR lenses—particularly Shortwave Infrared (SWIR) and Longwave Infrared (LWIR) lenses—their applications, the importance of Detection, Recognition, and Identification (DRI), and the differences between fixed focal, varifocal, and zoom lenses.

Understanding the Infrared Spectrum and IR Lenses

Infrared light is a segment of the electromagnetic spectrum that extends beyond visible light. It is generally categorized into:

  • Near-Infrared (NIR): 0.7 µm – 1.0 µm
  • Shortwave Infrared (SWIR): 0.9 µm – 1.7 µm
  • Midwave Infrared (MWIR): 3 µm – 5 µm
  • Longwave Infrared (LWIR): 8 µm – 14 µm

Each range serves different applications, with SWIR and LWIR being particularly important for imaging and thermal detection.

Why Specialized IR Lenses Are Needed

Traditional optical lenses, usually made from glass, are ineffective in the IR spectrum because glass absorbs infrared light. Instead, specialized materials such as Germanium, Chalcogenide glass, and Zinc Selenide are used. Additionally, IR lenses often feature anti-reflective coatings to improve light transmission and image clarity.

SWIR and LWIR Lenses – Key Differences and Applications

SWIR (Shortwave Infrared) Lenses

SWIR (Shortwave Infrared) lenses operate within a wavelength range of 0.9 µm to 1.7 µm, offering high-contrast imaging even in low-light conditions. These lenses can penetrate certain materials such as smoke, haze, and silicon, making them highly effective for various applications.

They are well-suited for use with 1064 nm laser sources, further enhancing their versatility. Common applications of SWIR lenses include industrial inspection in fields like food processing, semiconductor manufacturing, solar panel inspection, plastic sorting, and textile monitoring. They are also widely used in surveillance and security for low-visibility conditions, as well as in covert imaging and night vision operations.

LWIR (Longwave Infrared) Lenses

Operating within a wavelength range of 8 µm to 14 µm, these lenses are primarily used for thermal imaging by detecting heat emitted by objects. They require no external illumination, making them ideal for various low-light and no-light applications.

Common applications include surveillance, defence, and border security, as well as firefighting and rescue operations. Additionally, they play a crucial role in industrial temperature monitoring and predictive maintenance, helping to identify potential equipment failures before they occur.

Types of IR Lenses

Fixed Focal Lenses

Fixed focal lenses have a single, unchangeable focal length, offering higher optical quality and precision. They are cost-effective, simple to implement, and ideal for applications where the distance to the target remains constant. These lenses are commonly used in automation, industrial inspection, and scientific imaging.

Varifocal Lenses

Varifocal lenses, on the other hand, have an adjustable focal length within a limited range, requiring manual refocus when the focal length changes. They provide flexibility for applications with varying distances and offer zoom capability without the complexity of motorized zoom lenses. This makes them suitable for security cameras, situational monitoring, and border surveillance.

Zoom Lenses

Zoom lenses feature a continuously variable focal length, often motorized for remote control, allowing real-time zoom adjustments. They are particularly useful for long-range surveillance and tracking, making them a preferred choice for military and law enforcement, wildlife monitoring, and advanced surveillance systems.

Additional Considerations When Selecting an IR Lens

Lens Material & Coatings

The choice of lens material plays a crucial role in IR lens performance. Germanium is the preferred material for LWIR applications due to its high durability, though it is expensive. Chalcogenide glass offers a cost-effective alternative, while Zinc Selenide is commonly used for both MWIR and LWIR applications. Coatings also impact lens efficiency, with anti-reflective coatings reducing optical loss and improving overall performance. Additionally, Diamond-Like Carbon (DLC) coatings enhance durability, making lenses more resistant to harsh environmental conditions.

Environmental Factors

Temperature stability is an important consideration, as some materials expand with temperature changes, affecting focus and image clarity. In extreme environments, humidity and dust resistance become critical, requiring protective coatings and ruggedized lenses to ensure longevity and performance.

Integration with IR Sensors

Proper integration of IR lenses with sensors is essential for optimal imaging. Matching the lens to the sensor type, whether cooled or uncooled, enhances overall performance. Additionally, ensuring that pixel pitch and sensor resolution align with the lens capabilities helps prevent image degradation and maintains image quality.

DRI – Detection, Recognition, and Identification in IR Imaging

Why DRI Matters

DRI (Detection, Recognition, Identification) is a critical concept in surveillance applications, as it defines an infrared system’s ability to detect, recognize, and identify objects at varying distances.

Understanding DRI

  • Detection: Identifying the presence of an object against the background.
  • Recognition: Differentiating between general categories (e.g., human vs. vehicle).
  • Identification: Confirming specific details (e.g., uniform type, license plate number).

How Lens Choice Affects DRI

Lens choice significantly impacts Detection, Recognition, and Identification (DRI) capabilities. Higher focal lengths improve identification at long distances by providing greater magnification. Longwave Infrared (LWIR) lenses excel in detection due to their ability to capture thermal contrast, making them ideal for spotting heat-emitting objects. Meanwhile, Shortwave Infrared (SWIR) lenses enhance recognition and identification in low-visibility conditions, offering high-contrast imaging even through smoke, haze, or other obscurants.

Choosing the Right IR Lens for Your Application

For surveillance and security applications, LWIR zoom or varifocal lenses are ideal for long-range monitoring, providing flexibility and enhanced detection capabilities. In industrial and scientific use, SWIR fixed focal lenses are preferred for high-contrast imaging, making them suitable for detailed inspections. Defence and military operations benefit from LWIR zoom lenses, which are effective for detection and tracking in various environments. For thermal inspections, LWIR fixed focal lenses are commonly used for accurate temperature analysis, ensuring precise monitoring of heat distribution and anomalies.

Conclusion

IR lenses enable imaging beyond the visible spectrum, playing a crucial role across various industries. SWIR and LWIR serve distinct applications based on their spectral properties, with DRI (Detection, Recognition, and Identification) being a key factor in determining imaging effectiveness. The choice between fixed, varifocal, or zoom lenses depends on specific application needs, influencing performance and adaptability. Investing in the right IR lens enhances system accuracy, efficiency, and overall functionality. Understanding the differences between SWIR and LWIR, along with the impact of focal length and coatings, ensures informed decision-making for optimal results.
