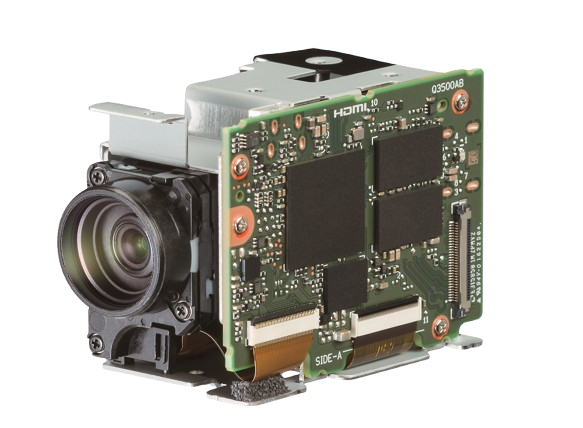

High-Performance Zoom Block Cameras for Precision Imaging
Zoom block cameras combine powerful optical zoom with compact design, delivering high-quality imaging for machine vision, security, traffic monitoring, and industrial inspection applications. With features like autofocus, low-light performance, and seamless integration into vision systems, these cameras provide exceptional clarity and detail, even at long distances. At Hwyl, we offer a range of reliable zoom block cameras to meet your unique application needs, ensuring precision, flexibility, and consistent performance.
Zoom block cameras often support 10x to 55x optical zoom. Optical zoom maintains image quality while magnifying distant subjects.
Models support Full HD to 8K Resolution. With back-illuminated CMOS sensors and WDR, these cameras perform well different lighting conditions.
Zoom block integrates Image sensor and lens with auto focus & stabilization into one module. The weight would vary from 70gm to 360gm.
Zoom Block cameras offer a wider range of variable focal lengths from 3.3mm to 297mm. The cameras offer a wide AOV of 73 (D) to Tele AOV of 2.16 (D).
Block cameras support Day / Night mode and is sensitive to low light conditions (Starlight sensitivity) with minimum illumination of 0.001 lux.
Offers output interfaces such as USB, HDMI, IP, LVDS, etc and controlled via serial protocols like VISCA or Pelco-D, often over RS-232/RS-485 or IP.
High-Performance Optical Module for EO-IR Applications
Application Areas
Zoom block cameras play a critical role in both aerial and ground-based Electro-Optical (EO) and Infrared (IR) systems, where long-range visibility and precise target tracking are essential. Their compact form factor and powerful optical zoom make them ideal for integration into drones, UAVs, and gimbaled payloads, providing stable, high-resolution imagery for surveillance, reconnaissance, and mapping missions.
- Drones, UAVs and ROVs
- Long Range Surveillance
- Defence & Aerospace
- Medical Imaging
- Research & Development
In defence and security applications, zoom block cameras enable accurate identification and tracking of objects over extended distances, day or night, by pairing with IR sensors for enhanced situational awareness. On the ground, they are deployed in border surveillance, vehicle-mounted systems, and perimeter monitoring, ensuring reliable performance in demanding environmental conditions. Whether for aerial intelligence gathering or ground-based observation, zoom block cameras deliver the clarity and control needed for modern EO/IR systems.
Product Name
Product Name
Product Name
Product Name
Product Name
Product Name
Product Name
| Optical & Digital Zoom | Focal Length | Horizontal Wide & Tele | Video Out | Weight |
|---|---|---|---|---|
| 10x Optical & 16x Digital | f = 3.3 mm to 33mm | Wide 59.20° Tele 6.70° | CVBS, LVDS, IP, HDMI, USB, 3G-SDI | 70gm |
| 18x Optical & 32x Digital | f = 6.8 mm ~ 120 mm | Wide 58.50° Tele 3.70° | LVDS, HDMI | 293gm |
| 20x Optical & 32x Digital | f = 5.2mm ~ 104mm | Wide 56.40° Tele 3.10° | LVDS/ EX-SDI/ HD-Analog/ CVBS | 232gm |
| 23x Optical & 16x Digital | f = 6.7 mm ~ 154.1 mm | Wide: 59.60° Tele: 3.50° | LVDS, IP | 316gm |
| 30x Optical & 32x Digital | f = 6.5 mm to 162.5 mm | Wide 58.10° Tele 2.30° | CVBS, LVDS, IP, HDMI, USB, 3G-SDI | 439gm |
| 36x Optical & 32x Digital | f = 6.0 mm to 216.0 mm | Wide 52.60° Tele 2.00° | CVBS, LVDS, IP, HDMI, USB, HD-SDI | 416gm |
| 40x Optical & 32x Digital | f = 4.25 mm to 170 mm | Wide 66.35° Tele 1.90° | CVBS, LVDS, IP, HDMI, USB, 3G-SDI | 355gm |
| 55x Optical & 32x Digital | f = 4.25 mm to 234 mm | Wide 62.13° Tele 1.29° | CVBS, LVDS, IP, HDMI, USB, HD- SDI | 355gm |
